Have You Heard of the Calcard?

Trainee posing in the training bay surrounded by wiring boards and equipment

Electricians rely heavily on their test instruments. Accuracy is critical — whether you’re checking insulation resistance, continuity, or verifying safety before signing off an installation. Normally, meters are sent off for full c alibration once a year, but what about the months in between? That’s where the Calcard comes in.

Introduced in 2009, the Calcard is a simple but clever tool designed to give sparks peace of mind by providing regular, on-site accuracy checks. Compact, durable, and widely approved by industry bodies, it has become a trusted companion for many electricians.

What Does the Calcard Do?

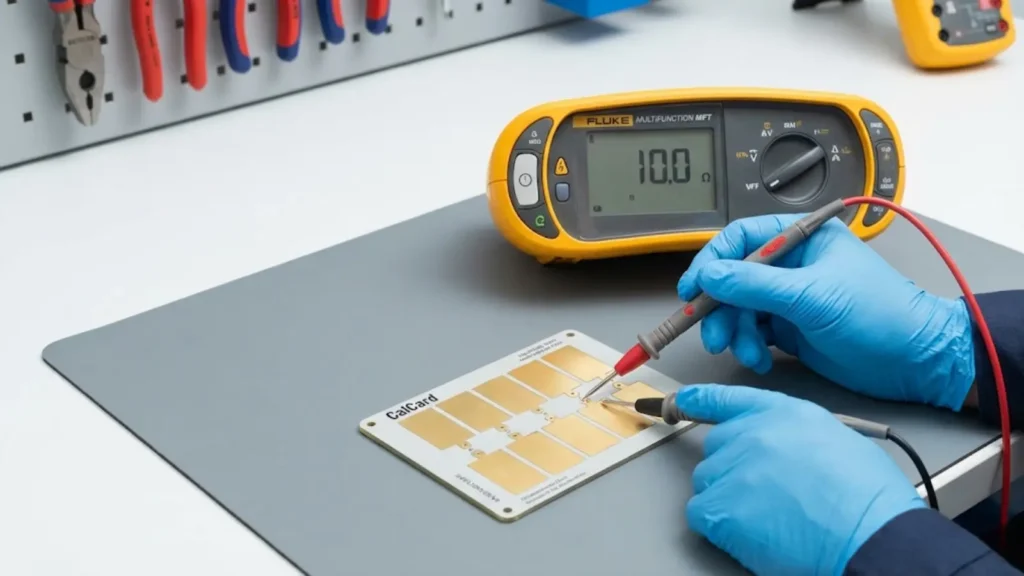

The Calcard allows you to verify both insulation resistance and continuity functions on your multi-function tester (MFT):

  • Insulation resistance values: 0.5MΩ, 1MΩ, 2MΩ, 10MΩ, 20MΩ (tested at 500V).
  • Continuity values: 0.25Ω, 0.5Ω, 1Ω, 2Ω, 5Ω.

It’s recommended that electricians perform these checks once a month and record the results. By doing so, you’re able to spot any drift or inconsistency in your tester well before your next annual calibration.

The Calcard comes with a three-year guarantee and is widely accepted by organisations like NICEIC and NAPIT as a useful in-between measure for calibration assurance.

Design and Build

About the size of a credit card, the Calcard is easy to carry in your wallet or toolkit. Made from laminated glass fibre, it’s tough enough to withstand daily site use without cracking or bending.

The card also features test pads designed to make checking probes simple. You don’t even need to remove the probe tips to run m onthly checks, which keeps the process quick and straightforward. Each Calcard is supplied with a unique serial number that can be tied to your meter for record-keeping.

Benefits of Using a Calcard

  • Ease of use – Quick monthly checks without specialist equipment.
  • Peace of mind – Confirms your tester is still reading accurately.
  • Accountability – Keeps a record of ongoing verification between annual calibrations.
  • Affordability – Low cost compared to a full re-calibration.

For newly qualified sparks, having this extra layer of assurance is invaluable. If you’re still building your experience and confidence, the Calcard helps verify your kit before signing off results.

Learners preparing portfolios with evidence from real jobs — for example through building your NVQ Level 3 portfolio — will understand how important reliable test data is when submitting work for assessment.

Limitations of the Calcard

It’s important to understand what the Calcard cannot do:

  • It only checks specific resistance and insulation values.
  • It does not replace full 12-month calibration.
  • It won’t verify all functions of a modern MFT.

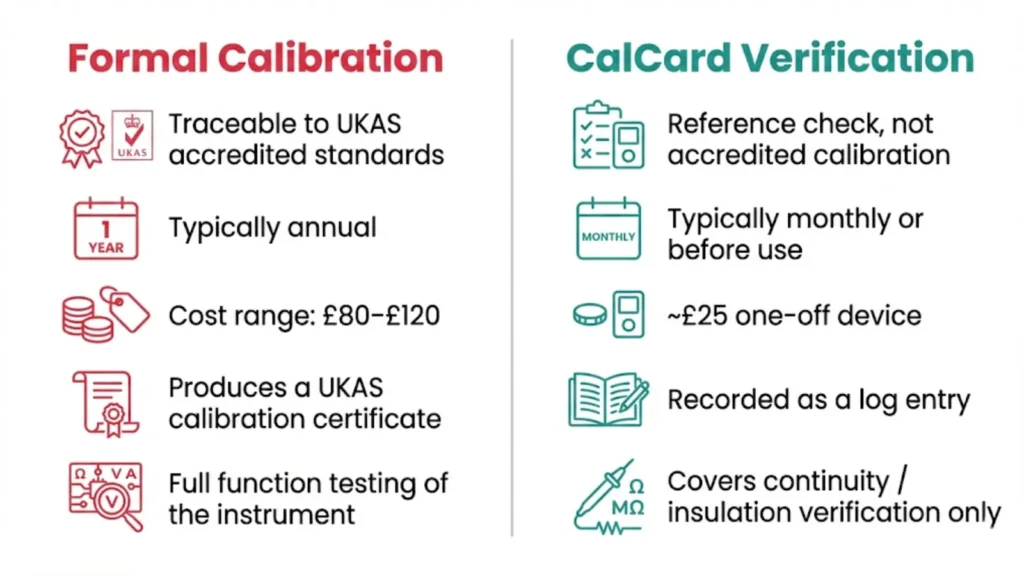

In short, it’s a supplement, not a substitute. Full calibration tests remain essential and must still be carried out annually by an accredited calibration provider.

Industry Opinions

Feedback on the Calcard has been mixed:

  • Positive – Many electricians value the convenience, reassurance, and prompt to carry out monthly checks. Some say it’s especially handy if a tester has been dropped or stored in extreme temperatures.
  • Negative – Critics argue that because it doesn’t test every function, it isn’t worth the expense and that annual calibration is sufficient.

Despite the debate, major organisations such as NICEIC, IET, and NAPIT continue to recommend its use. That e ndorsement alone suggests it plays an important role in maintaining standards across the trade.

Is It Worth Buying?

For the cost, the Calcard provides solid value. You’re essentially buying:

  • A portable verification tool.
  • A habit-forming reminder to check your MFT monthly.
  • Documentation support for compliance and reassurance.

If you’re working towards advanced qualifications or preparing for future changes in the regs (see the truth about the 19th Edition), having accurate, verified test readings is non-negotiable.

Similarly, electricians training at centres such as Stoke-on-Trent or Derby can benefit from practising with tools like the Calcard as part of their skills development.

The Calcard won’t replace a full calibration, but it was never designed to. Instead, it fills the gap between annual tests, ensuring your readings remain reliable. For the small investment, it’s a practical addition to any electrician’s kit.

If you’re newly qualified or building your career, the reassurance it brings can outweigh the cost. For experienced sparks, it’s a simple way to maintain high standards and avoid unpleasant surprises.

Like many tools in the trade, the real question is not whether you need it, but whether you want the extra confidence it provides. For most electricians, the answer is yes.

FAQ: Calcard for Electrical Testers in the UK

1 – What is a Calcard and why was it introduced? The Calcard is a credit card-sized calibration checkbox for verifying insulation resistance and continuity accuracy of multifunction testers. Introduced in September 2009 to meet IET EAS requirements for ongoing accuracy checks between full calibrations.

2 – How often should I check my tester with a Calcard? Check monthly or quarterly, as recommended by NICEIC and NAPIT, to ensure readings remain consistent and detect drift early.

3 – Which values can the Calcard verify for insulation resistance and continuity? It verifies insulation resistance at 0.5MΩ, 1MΩ, 2MΩ, 10MΩ, 20MΩ (up to 1500V); continuity at 0.25Ω, 0.5Ω, 1Ω, 2Ω, 5Ω.

4 – Does using a Calcard replace the need for full annual calibration? No, it verifies ongoing accuracy between annual calibrations but doesn’t replace full lab calibration for all functions; annual is still required.

5 – Is the Calcard recognised by organisations like NICEIC, IET, and NAPIT? Yes, it’s approved by NICEIC, IET, NAPIT, ECA, and ELECSA for demonstrating instrument consistency under EAS guidelines.

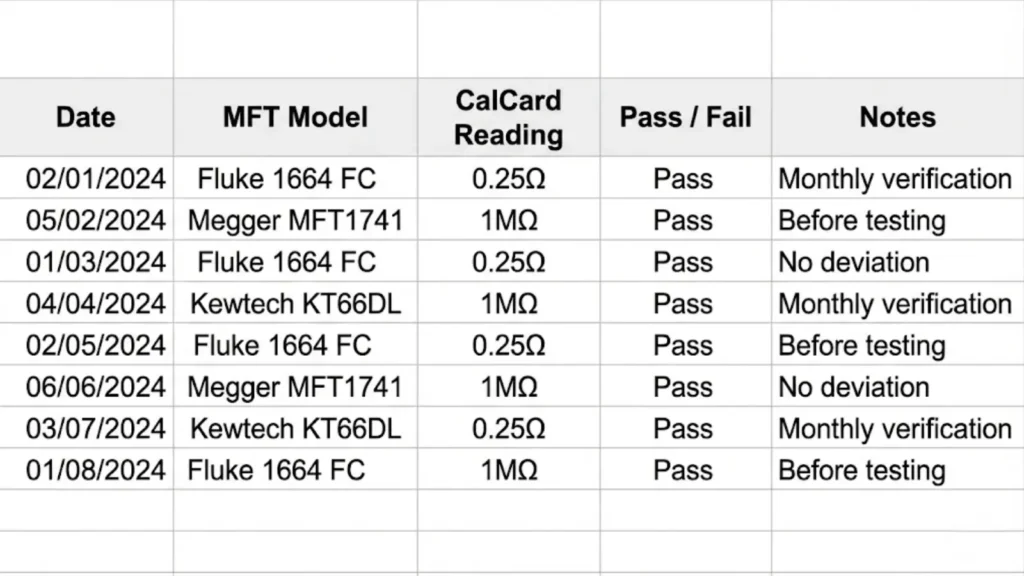

6 – How do I record Calcard test results for compliance purposes? Record dates and readings on the card’s reverse table or via apps like Calkeeper for digital logs, keeping for inspector audits.

7 – What happens if my tester readings don’t match the Calcard values? Mismatched readings indicate drift; recalibrate the tester immediately and stop using it to avoid inaccurate safety assessments.

8 – How long does a Calcard last, and is there a guarantee? A Calcard lasts indefinitely if undamaged; it’s durable fibreglass with no expiry, but replace if worn; 1-year manufacturer guarantee.

9 – What are the main advantages of using a Calcard on site? Advantages include portability (wallet-sized), quick checks, cost savings vs. frequent calibrations, and compliance proof for schemes like NICEIC.

10 – Are there any limitations electricians should be aware of before buying one? Limitations include only verifying insulation/continuity (not full functions like RCD/loop), and it’s not a substitute for annual calibration.

FAQs

What is a Calcard and why was it introduced?

A Calcard is a compact, portable verification device used by electricians to check the accuracy of multifunction testers (MFTs) for insulation resistance and continuity measurements, ensuring compliance with BS 7671:2018+A2:2022. It was introduced in 2012 by Megger to provide a quick, on-site alternative to full calibration, addressing the need for cost-effective verification amid rising testing demands and HSE requirements for traceable accuracy.

How often should I check my tester with a Calcard?

Electricians should check their tester with a Calcard every 3–6 months or before critical jobs, as recommended by NICEIC and IET for maintaining compliance with BS 7671. More frequent checks (monthly) are advised for high-use testers or in harsh environments.

Which values can the Calcard verify for insulation resistance and continuity?

The Calcard verifies insulation resistance at 1 MΩ (250V/500V/1000V) and continuity at 0.5 Ω, providing traceable reference values for MFT accuracy checks. These align with BS EN 61557 standards.

Does using a Calcard replace the need for full annual calibration?

No, using a Calcard does not replace full annual calibration, which is required for traceability under BS 7671 and CPS schemes like NICEIC. It’s a supplementary on-site verification tool, not a substitute for lab calibration.

Is the Calcard recognised by organisations like NICEIC, IET, and NAPIT?

Yes, the Calcard is recognised by NICEIC, IET, and NAPIT as a valid verification tool for MFTs, supporting compliance with BS 7671 and their technical requirements for traceable testing.

How do I record Calcard test results for compliance purposes?

Record Calcard results in your tester’s logbook or digital report (e.g., via Megger PowerSuite app), noting date, readings (e.g., 1 MΩ insulation), and tester serial number, then store for audits or EICRs as per NICEIC/IET guidance.

What happens if my tester readings don’t match the Calcard values?

If readings don’t match (e.g., >10% deviation), the tester is inaccurate and must be sent for full calibration or repair; do not use it for compliance work to avoid invalid EICRs or safety risks.

How long does a Calcard last, and is there a guarantee?

A Calcard lasts indefinitely if stored properly (cool, dry place), with no expiry date, and comes with a 5-year guarantee against manufacturing defects from Megger.

What are the main advantages of using a Calcard on site?

Main advantages include quick on-site verification (5–10 minutes), cost savings (£50–£100 vs. lab calibration), traceability for audits, and portability for compliance without shipping testers.

Are there any limitations electricians should be aware of before buying one?

Limitations include verifying only insulation resistance and continuity (not RCD/loop impedance), requiring annual lab calibration alongside, and not being a substitute for full tester maintenance. It’s a supplement, not a replacement.
