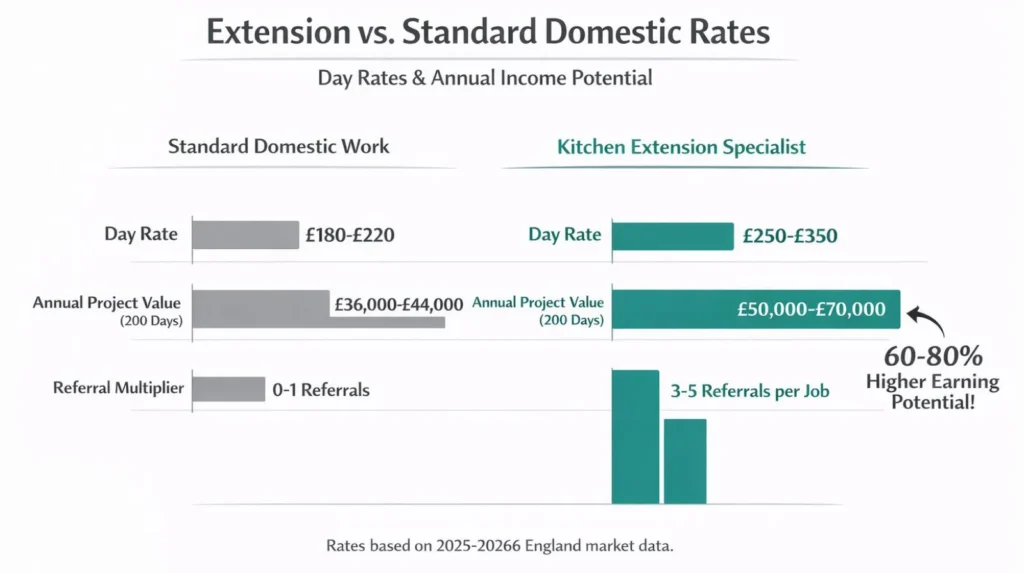

Kitchen Extension Electrical Requirements UK: Load Calculations, Circuit Design and Why Extensions Beat Standard Domestic Work

Under Part P of the Building Regulations in England and Wales, notifiable work in a kitchen extension includes the installation of a new circuit (e.g., for sockets, lighting, or appliances), replacement of a consumer unit, or addition/alteration to circuits in special locations—though kitchens are not classified as special locations (unlike bathrooms). Minor works like replacing sockets or adding spurs to existing circuits are non-notifiable if compliant with BS 7671, but must still meet safety standards. Notification to building control is required unless performed by a registered competent person under a scheme like NICEIC or ELECSA, who can self-certify.

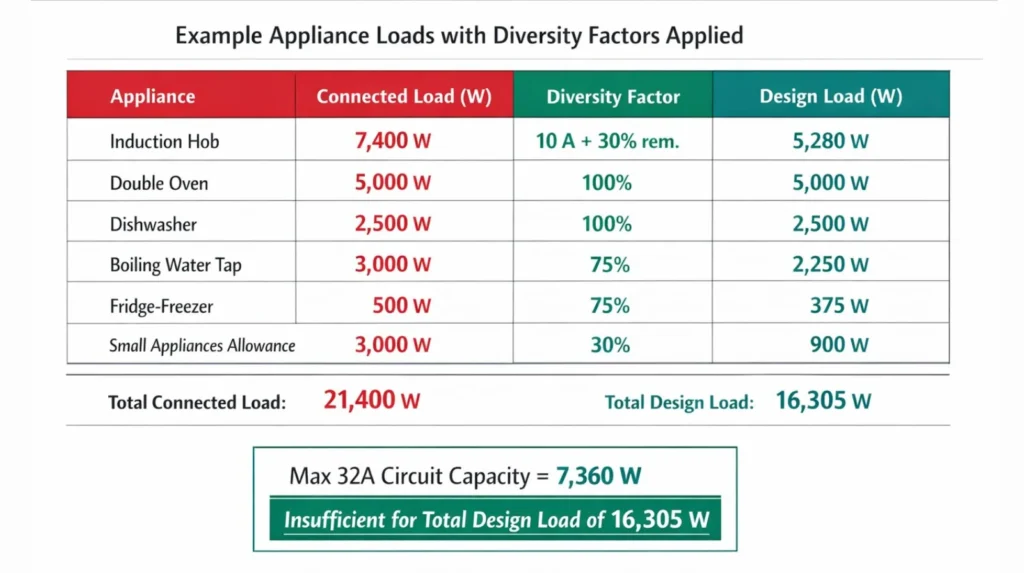

Diversity calculation per BS 7671 Appendix 15 (informative) assesses maximum demand to size supply cables and consumer units. For a kitchen extension, include loads such as cooking appliances (first 10A at 100%, remainder at 30%, plus 5A if socket on appliance), socket-outlets (first ring/radial at 100% of largest circuit, others at 40%), lighting (100% of total current demand), and fixed appliances like extractors or water heaters. Apply diversity factors: e.g., 60% for multiple cooking appliances. Sum diversified loads; common pitfalls include omitting diversity for underfloor heating or overestimating continuous loads, leading to oversized installations.

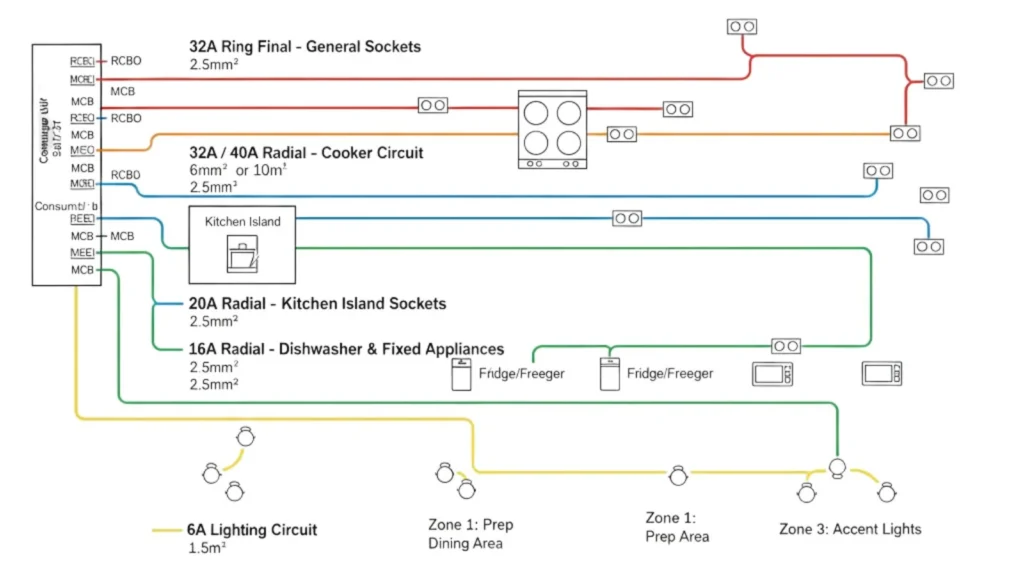

Ring finals (typically 32A with 2.5mm² T&E cable) are suitable for general-purpose sockets in kitchen extensions where floor area ≤100m² and even load distribution is expected, per BS 7671 Appendix 15, offering redundancy and reduced voltage drop. Use radials (e.g., 20A with 2.5mm² or 32A with 4mm²) for high-load areas, long runs, or where fault location is critical, as they simplify testing and avoid ring integrity issues like loose connections. Preference depends on layout; radials reduce nuisance tripping in RCBO setups but may require more circuits.

Dedicated circuits are required under BS 7671 for appliances exceeding 2kW to prevent overload: induction hobs (up to 7-11kW) need a 32-45A radial with 6-10mm² cable; single ovens (2-3kW) a 13-16A radial with 2.5mm²; double ovens (4-5kW) a 20-32A with 4-6mm²; boiling-water taps (1.5-2kW) often a 13A fused spur from a ring or dedicated 16A radial. Diversity applies per Appendix 15, but isolate via DP switches for compliance and maintenance; common pitfalls include undersizing for peak inrush currents.

Cable sizing per BS 7671 Chapter 52 uses current-carrying capacity tables (e.g., 4D5 for T&E), applying derating factors: installation method (e.g., 0.78 for insulated in conduit), grouping (e.g., 0.65 for 4-6 circuits together), ambient temperature (e.g., 0.91 for 35°C in kitchens), and insulation (e.g., 0.5 for thermal insulation >100mm). Calculate Ib (design current) ≤ In (protective device rating) ≤ Iz (derated capacity); e.g., a 32A ring in grouped, insulated conditions may require upsizing from 2.5mm² to 4mm². Verify voltage drop and earth fault loop impedance; pitfalls include ignoring kitchen heat from appliances.

BS 7671 limits voltage drop to 3% for lighting circuits and 5% for other circuits (from origin to point of utilization at 230V nominal). Long kitchen island runs (e.g., 10-15m) exceed limits due to cumulative resistance in cables (e.g., 2.5mm² T&E at 18mΩ/m), especially with high loads like sockets or LEDs, causing dimming or inefficiency. Issues arise from underestimating length in open-plan designs; mitigate with larger cables (e.g., 4mm²), radials over rings, or sub-distribution boards.

RCBOs (combining MCB and RCD functions) are preferred in kitchen extensions per BS 7671 Regulation 531.3 for individual circuit protection, providing overcurrent, short-circuit, and residual current detection (30mA). They isolate faults to single circuits, reducing nuisance tripping compared to whole-board RCDs, especially in wet environments with appliances causing leakage (e.g., fridges). This minimizes disruption; common pitfalls include using Type AC RCBOs where Type A is needed for DC components.

Type A RCD/RCBO protection is required per BS 7671 Regulation 531.3.3 for circuits supplying equipment with electronic components producing pulsating DC residuals, such as induction hobs, inverter-driven ovens, washers, or LED drivers. In kitchen extensions, apply to socket circuits (≤32A) and all circuits in TT systems; Type AC suffices for purely resistive loads but fails with DC leakage, risking non-tripping. Use for all new installations to future-proof; pitfalls include mixing types leading to blinded protection.

Design per BS 7671 and good practice: task lighting (e.g., under-cabinet LEDs at 300-500lx) for worktops; ambient (e.g., recessed downlights at 150-300lx) for general illumination; mood (e.g., plinth or pendant dims at <100lx) for atmosphere. Zone via separate circuits or smart controls for flexibility. Avoid LED dimming issues like flicker by using compatible trailing-edge dimmers (not leading-edge), ensuring minimum load met, and selecting dimmable drivers; pitfalls include harmonic distortion exceeding EMC limits or inadequate earthing causing buzz.

Reliable methods include floor-mounted conduits with 4-6mm² cables for sockets/USB, or overhead supplies via structural beams, compliant with BS 7671 for accessibility and protection (e.g., SWA cable if buried). At first-fix, plan cable routes, install draw-wires in ducts, position junction boxes, and coordinate with flooring (e.g., 50mm depth for underfloor). Pitfalls: omitting island power needs retrofit chases or wireless alternatives, increasing costs; ensure RCD protection and voltage drop calculations for long runs.
